LS Shapes Window
Persistent shape palette plus helpers for better management of Moho® vectors in general and Liquid Shapes in particular. This script provides a visual and user-friendly interface for performing complex shape operations effortlessly.

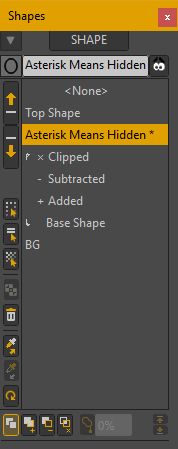

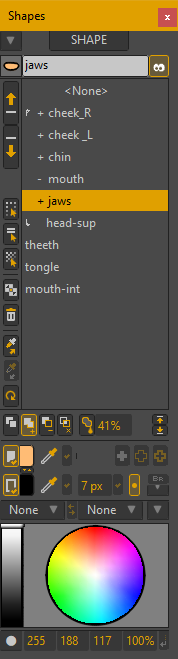

Gallery
UI (Expand/Collapse)
 |  |  |  |  |
Features
- Visualize layers’ shape relationships at a glance.
- Take the most of Liquid Shapes thanks to improved management.
- Rename, reorder, hide/show, etc. one or several shapes with ease.
- New ways of shape creation independently of selected tool.
- Shape selection helpers: Select all, Inverse, Similar, Identical…

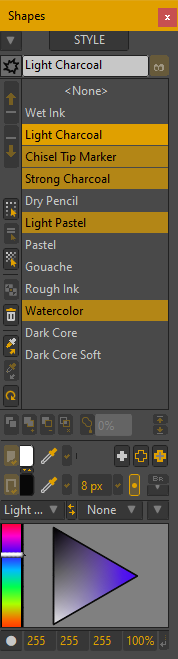

- Improved Style management, picking and modification.

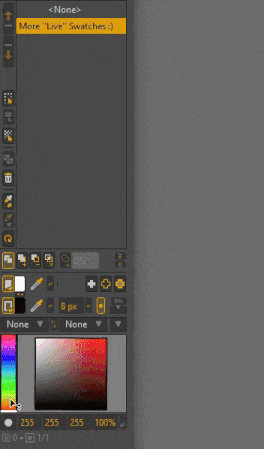

- Many interactive “live” Swatches (and you can easily make your own).

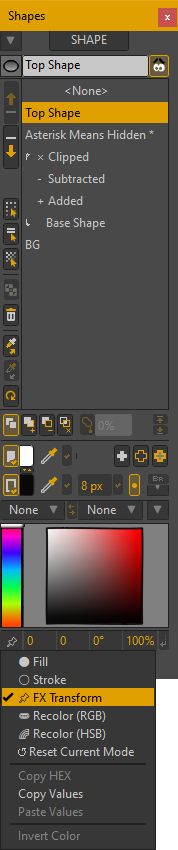

- Recoloring features plus other helpers.

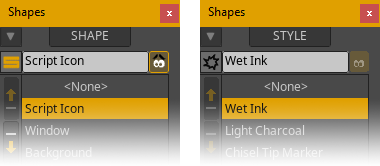

- Several window display modes to better suit your needs.
- And… much more!
Installation
Download the file, unzip it, and proceed with the installation method of your choice…
| MANUAL | ASSISTED |
|---|---|
1. You’ll get some of these folders: Menu / ScriptResources / Tool / Utility. | 1. In Moho, go to “Scripts > Install Script…” to open the installation wizard * |
| 2. Place’em all into the Scripts folder of your Custom Content Folder. | 2. Click Select A Script Folder, browse to the uzipped folder & select it. |
3. Restart Moho or press Alt + Shift + Ctrl + L to Reload Tools And Brushes. | * More details in chapter 23.17 Install Script… of Moho® user’s manual. |
And that’s all! The script should appear in Tools palette and/or under Scripts menu.
⚠ WARNING: Please, make sure you have uninstalled every Lost Script on your system before removing any of these shared resources or they may start throwing errors or stop working. For uninstalling a script, just remove any file and folder matching its name and restart Moho® or Reload Tools And Brushes if necessary.
Usage
- Opening: Open Shapes Window from Moho’s Tools palette or via its entry in the Scripts menu.
- Operating: Now you can have it permanently open to perform various shape operations.
- Customizing: Unfold Window’s main menu: 🔽 (at top left of the window) to access different settings & actions.
- Tooltips: If Beginners Mode is checked, holding the cursor over the different elements will give a hint of their functionality…
Collab & Support
Suggestions and bugs can be reported in the Issues section (preferably) or in the corresponding topic, if any, in Scripting section of the Lost Marble Forum.
Acknowledgments
My sincere thanks to…
- Stanislav Zuliy (Stan), for all his contributions & generosity.
- Lukas Krepel, for paving the modeless way 🙂
- Mike Kelley, for allowing me use the guts of his great Adjust Colors script.
- Wes (synthsin75), Paul (hayasidist) & Sam (SimplSam), for their support at the LM forums.
- Copilot & ChatGPT, for… erm… Why not? 🤷♂️
And, of course, to Lost Marble and the talented Moho® team for all the hard work and for making this all possible (again).
